Daks-96 offers a wide range of glass double edging machines in various configurations and for various purposes.

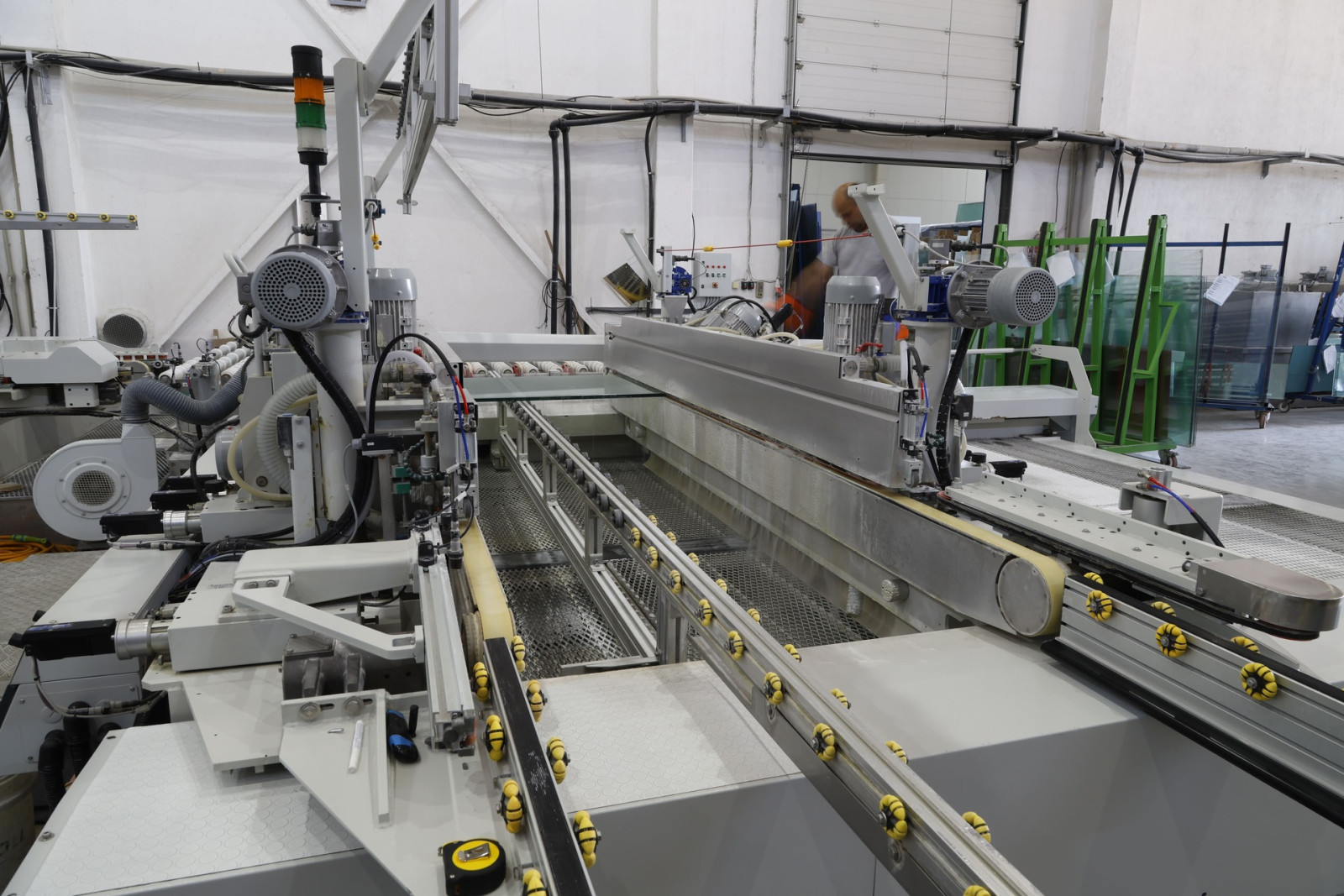

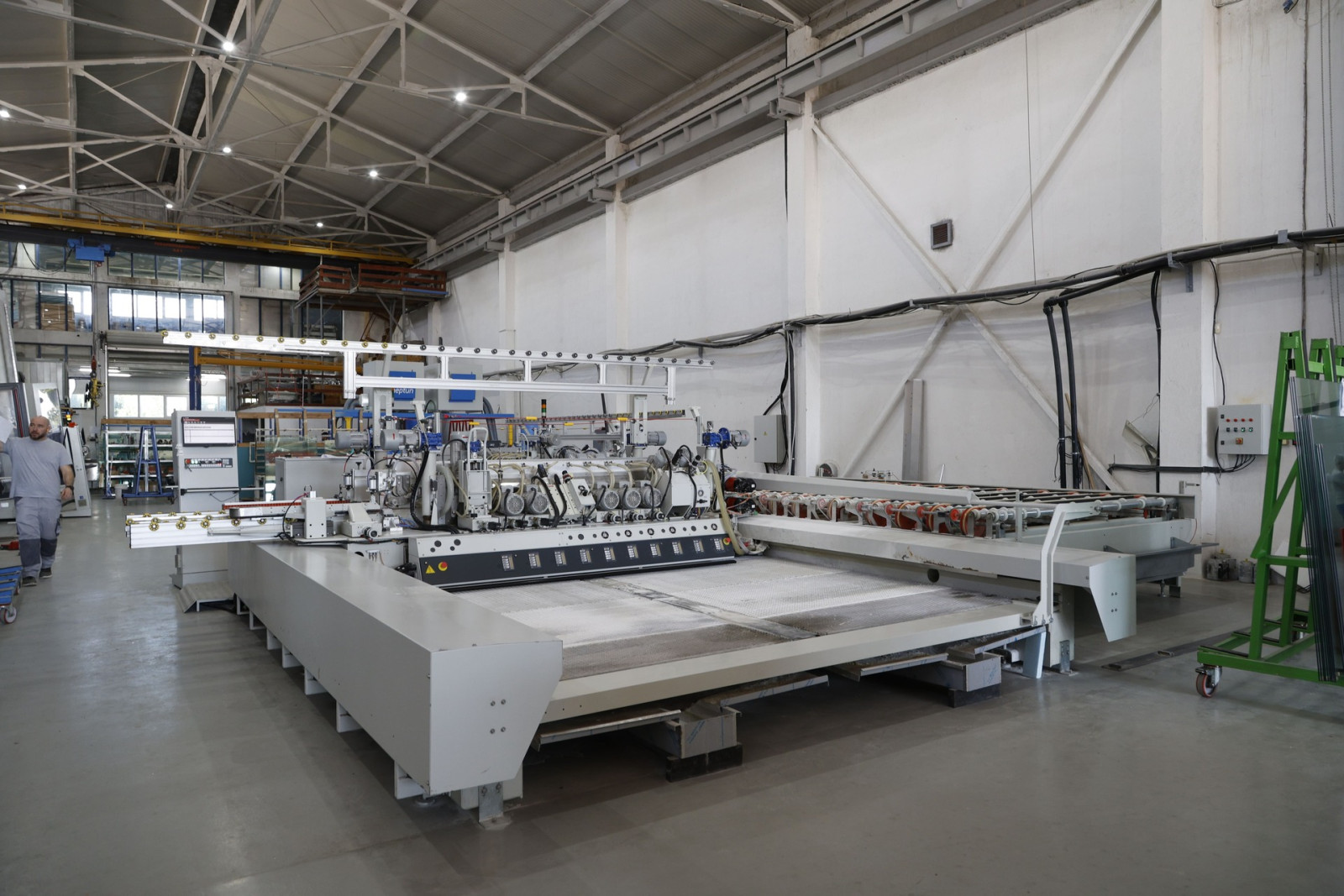

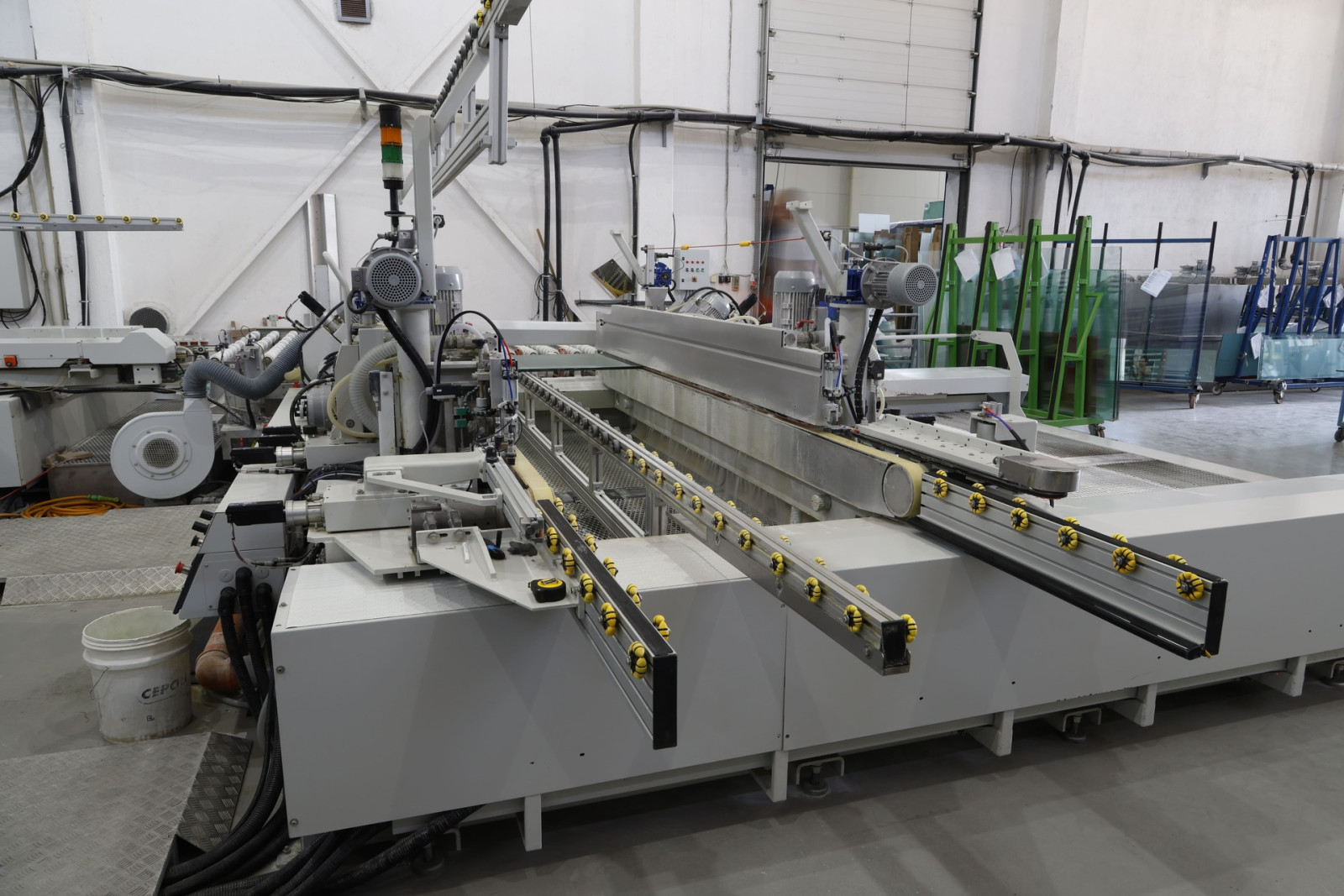

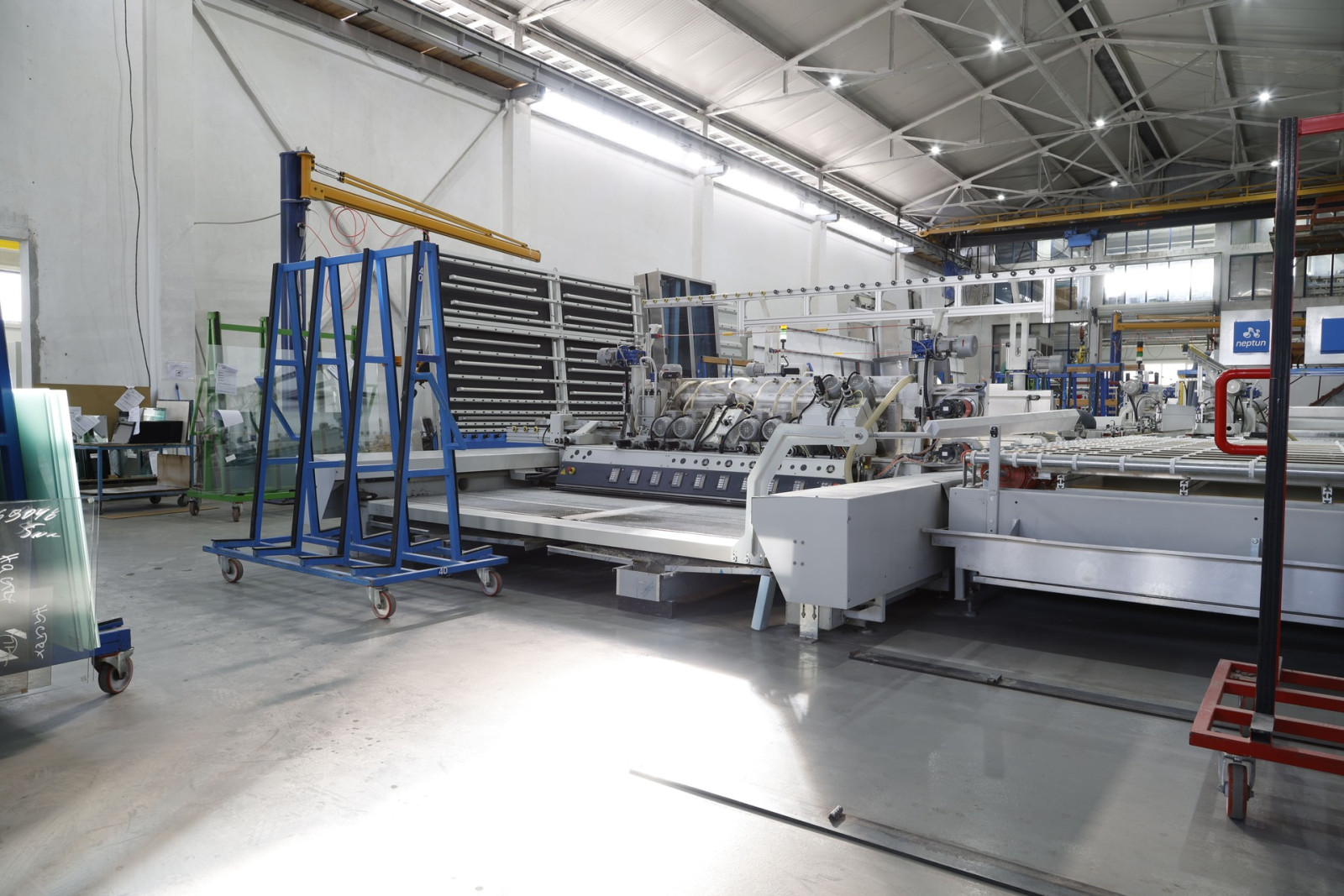

The HSD series glass straight line double edging machines are specialized in grinding simultaneously two sides of a flat glass for furniture glass, architecture glass, electronics glass and so on.

Glass is delivered horizontally, then crude grinding, refine grinding and polishing are finished in due order. The machine is characterized with rapid processing speed, high glass processing precision, high brightness of the polished edge and perfectly parallel sides.

These machines adopt advanced machine tool moving technology. They are controlled by a PLC control system with a touch panel interface screenwhich ensures perfect parallel processing results with high precision and easy operation. The machines adopt high precision transmission structure with two linear guiding bars and two ball bearing guide screws.

These double edging machines can be design according to customer requirement in terms of number of motor wheels, width and others. Also if the client requires it the minimum processing width can be specially ordered to be 150mm for the processing of small details.

Some of the standard models include:

HSD-08 – uses four motors (eight for both sides), and is used for rough grinding.


HSD-18 – uses nine motors (eighteen for both sides), and is used for rough and polished grinding.


HSD-20 – it uses ten motors (twenty for both sides), and is used for perfect polished grinding.
