Vertical glass drilling machines – Priam
Priam is a technologically advanced product. It is built from the best quality components from producers such as Siemens, Igus, Hiwin, Kubler, Schneider and Unitronics. The core of the machines is 10mm thick, ribbed steel body which was heat treated and completely produced in Poland.
The machine has the following advantages:
Easy to use.
Minimum learning time required.
Reliable.
Easy in repairing (modular construction – machine is made from modules which can be easily disassembled, recovered or replaced by the new one).

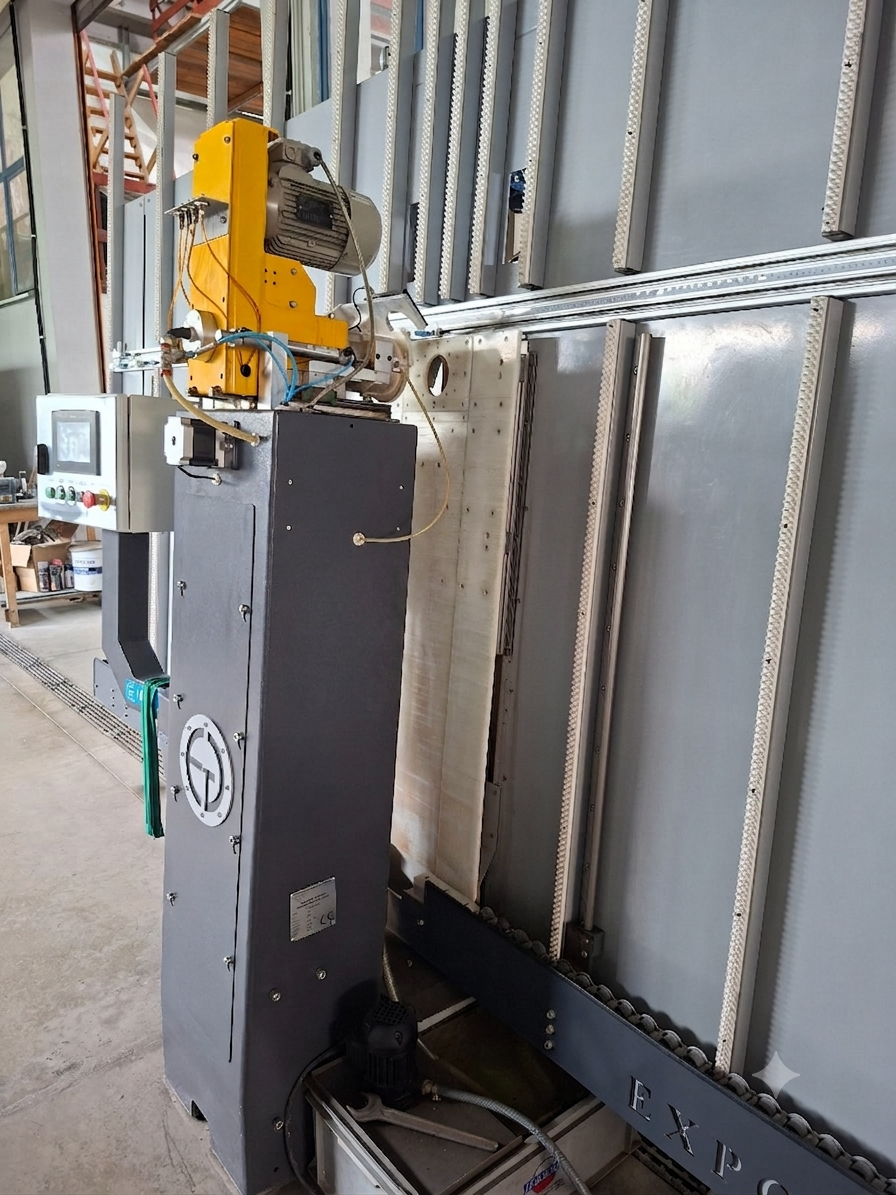

The Priam is a two-spindle, vertical glass drilling machine. It is a device that was created for customers who need a machine that is functional and easy to use but also very durable.
Technical data:
Length - 4440 mm
Height - 2370 mm (option Priam Maxi 2670 mm)
Width - 1100 mm
Weight - 1100 kg (option Priam Maxi 1300 kg)
Maximum distance of drilling to bottom of the glass - 840 mm (option Priam Maxi 1140 mm)
Glass thickness - 3 to 20 mm
Communication - touchscreen 7” and analogue buttons
Spindle feed (motion) - automatic
Spindle feed steering - electronic (not pneumatic)
Setting of loading bar height - electronic
Spindle rotation speed - 700 RPM to 2800 RPM
Measurement of the drill position - automatic with laser
Drills changing mode - lowering of the white top and blocking spindle rotation
Setting of the drilling depth - electronic (calculated by a controller)
Horizontal positioning - two row of bumpers with measure (manual)
Glass clamping system - pneumatical
Hole chamfering mode - installed, electronically driven
Description:
2 spindles (front and rear) - allow drilling of the glass in a single pass - without turning it.
Electronically controlled loading bar- to set the dimension of the bottom edge of the glass to the center of the hole, simply enter the desired dimension on the touch screen - the machine will position itself to the appropriate position.
Quick drills change mode - after pressing the drill button, both spindles are automatically locked (you cannot rotate them), the vertical table, which is between two drill bits, goes down - thus opening a large space between them. Thank to this process the drill can be unlocked without using a single key (in the worst case, only one), with a lot of space for comfortable carrying out this operation.
Automatic measurement of the length of drills - after the exchange of drills, automatic calibration is performed - measuring their length so that the machine knows the distance between sheet and drill face of each drill - very important in small companies where most holes are made individually not in series.
Automatic calculation of spindle depth - after automatic spindle calibration, operator needs only to set on the touch screen the thickness of drilled glass. After that the machine automatically chooses the ideal values of depths and the operator's tasks will only include clicking on the button - "drilling" since the whole operation is performed automatically.
Electronically controlled spindle feed - allows to significantly increase parameters of drilling. Thanks to this feature the spindle feed values can be perfectly matched to each situation and changed by a few clicks on the screen. This is illustrated, for example, by the fact that if, after drilling 15mm glass, we need 10 seconds to change settings, we can immediately drill 2mm glass without fear of cracking it. All this without the operator's experience.
Automatic adjustment of RPM - it is enough to enter on the touch screen the diameter of the drill bit and machine will automatically select a specific speed of rotation.
Drilling in a closed chamber - the Expoglass drilling machine has a separate drilling spindle not mounted directly on the electric motor. Which translates into several important advantages:Easier service
High rigidity of the system
Minimized vibrations
Increased security
Improved cooling capabilities
Reduced splashing of water and thus extended life of the machine
Massive, ribbed body, subjected to heat and mechanical treatment - even the most precise systems and mechanisms lose their sense on a flaccid body that deforms during operation. Due to the highly oversized body, the Expoglass drill has very low vibrations and deformations during operation, which makes it an extremely vital machine and can work on high parameters with close to zero risk of material breaking.
