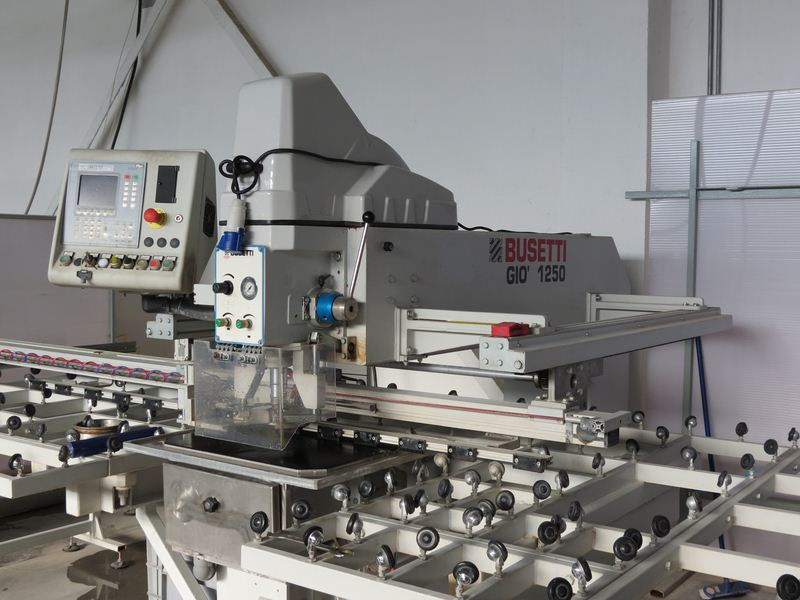

Certain glass components require precisely positioned holes and cut-outs to enable proper installation and assembly. To meet these requirements, Dax-96 operates a CNC-controlled dual-head drilling machine capable of delivering highly accurate and consistent results.

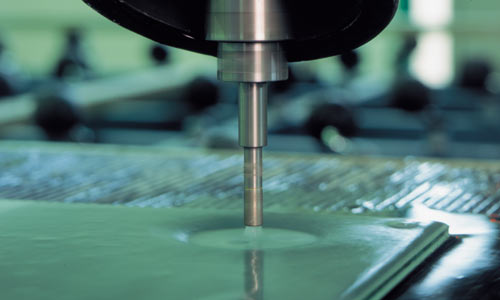

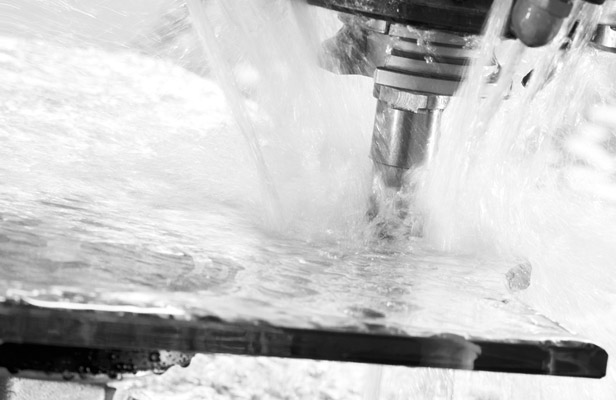

Drilling Capabilities
Glass thickness range: 3 mm to 40 mm
Available drill diameters:Ø4 mm
Ø5 mm
Ø6 mm
Ø7 mm
Ø8 mm
Ø10 mm
Ø12 mm
Ø13 mm
Ø14 mm
Ø16 mm
Ø18 mm
Ø19 mm
Ø20 mm
Ø22 mm
Ø24 mm
Ø26 mm
Ø31 mm
Ø32 mm
Ø34 mm
Ø36 mm
Ø45 mm
Ø50 mm
Ø60 mm
Ø66 mm
Ø70 mm
Ø90 mm
Ø120 mm
Additional hole diameters and special openings can be produced using our advanced CNC glass processing center.

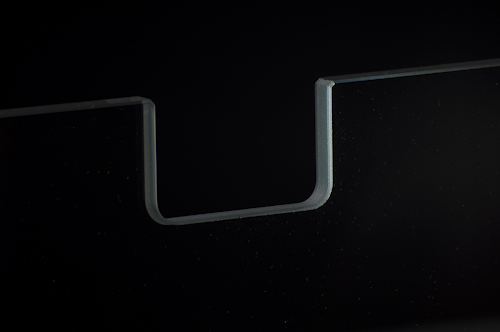

Glass Cut-Outs
In addition to drilling, Dax-96 offers precision cutting of custom glass cut-outs to meet specific installation and design requirements.

Commonly requested cut-outs include:

Hinge cut-outs
Internal cut-outs
Glass fitting cut-outs
Hardware mounting cut-outs
Custom architectural and decorative cut-outs
Our modern equipment ensures precise dimensions, clean edges, and consistent quality, making the processed glass suitable for applications such as doors, partitions, shower enclosures, facades, railings, furniture, and other architectural glazing systems.
